Mô tả

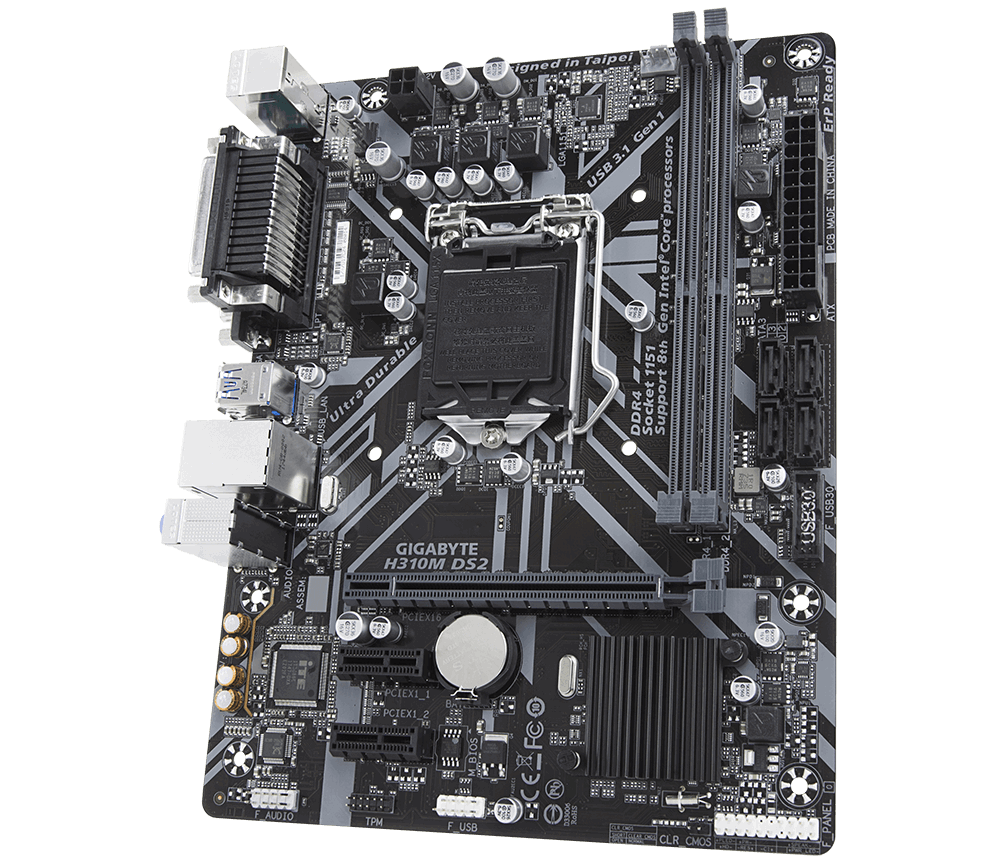

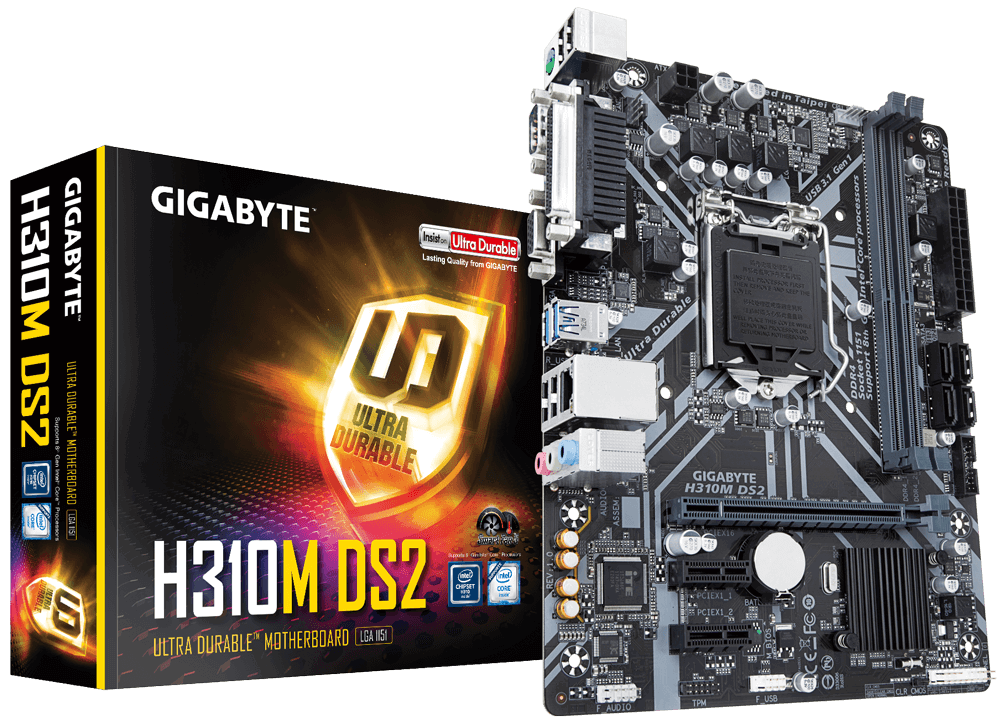

| Tên gọi | Gigabyte H310M-DS2 |
| CPU hỗ trợ | Intel® Socket 1151 for 8th Generation Core™ Processors |
| Chipset / Socket | Intel® B310 |
| Bộ nhớ (RAM) | • 2 x DDR4 memory slots, support up to 32GB
• Supports DDR4 2400/ 2133 MHz (by JEDEC)1 • Supports DDR4 2400/ 2133 (by XMP OC)1 • Supports Dual-Channel mode • Supports non-ECC, un-buffered memory • Supports Intel® Extreme Memory Profile (XMP) |
| Công nghệ đa GPU | • Không hỗ trợ |
| Khe cắm mở rộng | • 1 x PCI Express 3.0 x16 Slots • 2 x PCI Express 3.0 x1 Slots |
| LAN / Wireless | • Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Âm thanh | • Realtek® ALC887 Codec |
| Cổng kết nối (Internal) | • 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector • 4 x SATA 6Gb/s connectors • 1 x CPU fan header • 1 x system fan header • 1 x front panel header • 1 x front panel audio header • 1 x USB 3.1 Gen 1 header • 1 x USB 2.0/1.1 header • 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) • 1 x Clear CMOS jumper |

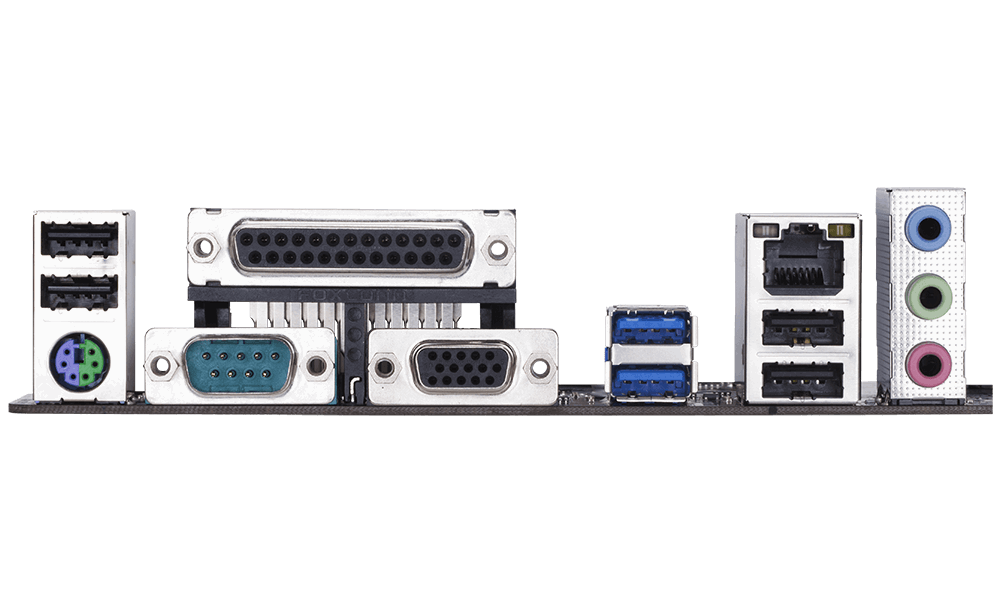

| Cổng kết nối (Back Panel) | • 1 x PS/2 keyboard/mouse port
• 1 x parallel port • 1 x serial port • 1 x D-Sub port • 2 x USB 3.1 Gen 1 ports • 4 x USB 2.0/1.1 ports • 1 x RJ-45 port • 3 x audio jacks
|
| Công nghệ độc quyền | • Support for APP Center
• Support for Q-Flash • Support for Xpress Install |
| Phụ kiện đi kèm | – Quick Installation Guide, Support CD, I/O Shield |
| Hệ điều hành khuyến nghị | • Windows® 10 64-bit |
| Chuẩn kích cỡ | • mATX Form Factor |
