Mô tả

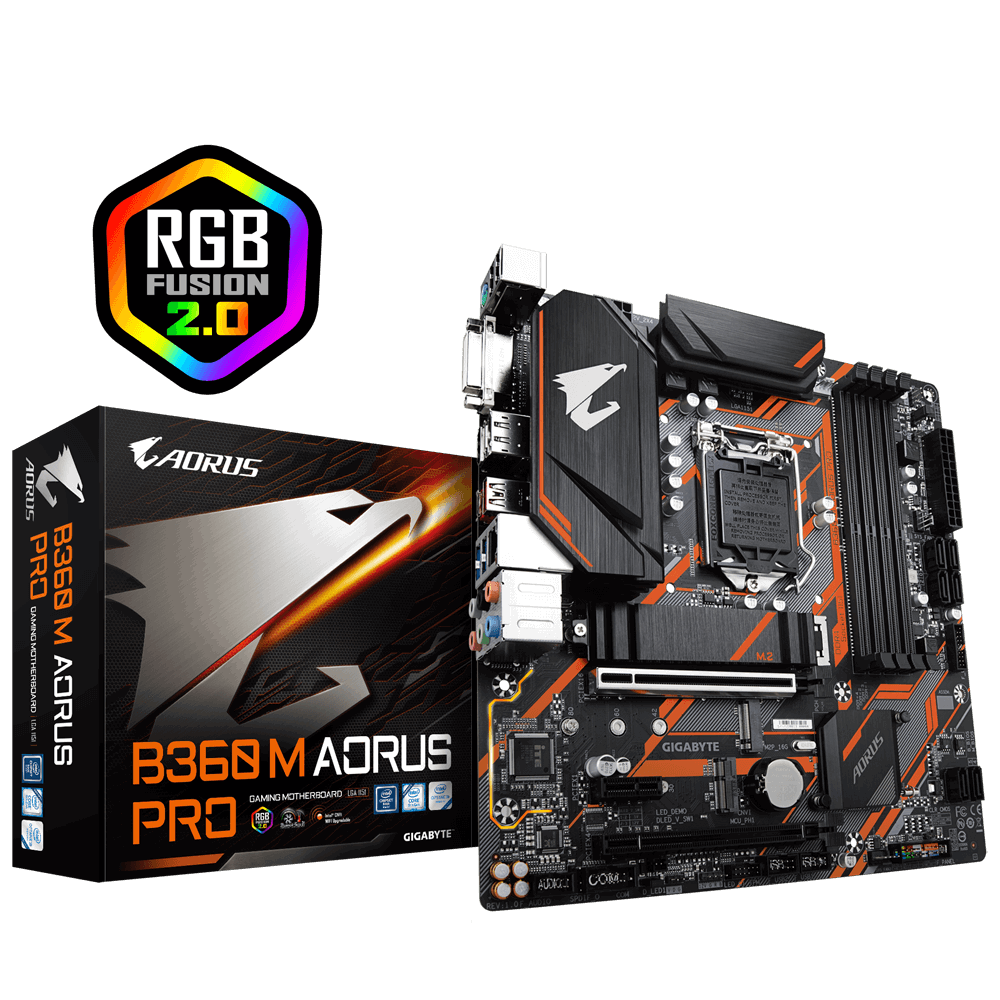

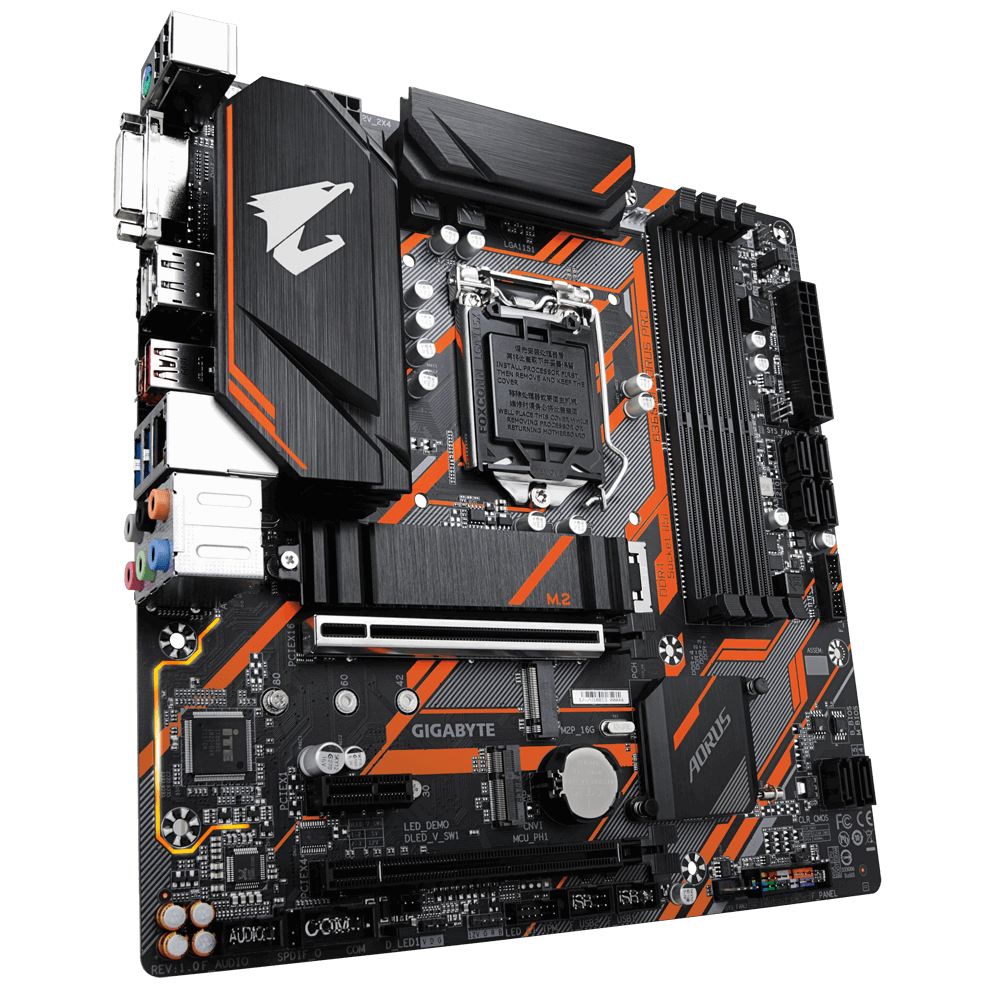

| Model | B360 M AORUS PRO |
| CPU hỗ trợ | Intel |
| Chipset | B360 |
| RAM hỗ trợ | 2 x DDR4 memory slots, support up to 64GB DDR4 2666/2400/2133 MHz |
| Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) |
| Ổ cứng hỗ trợ | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G) 6 x SATA 6Gb/s connectors |
| Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x addressable LED strip power select jumpers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |

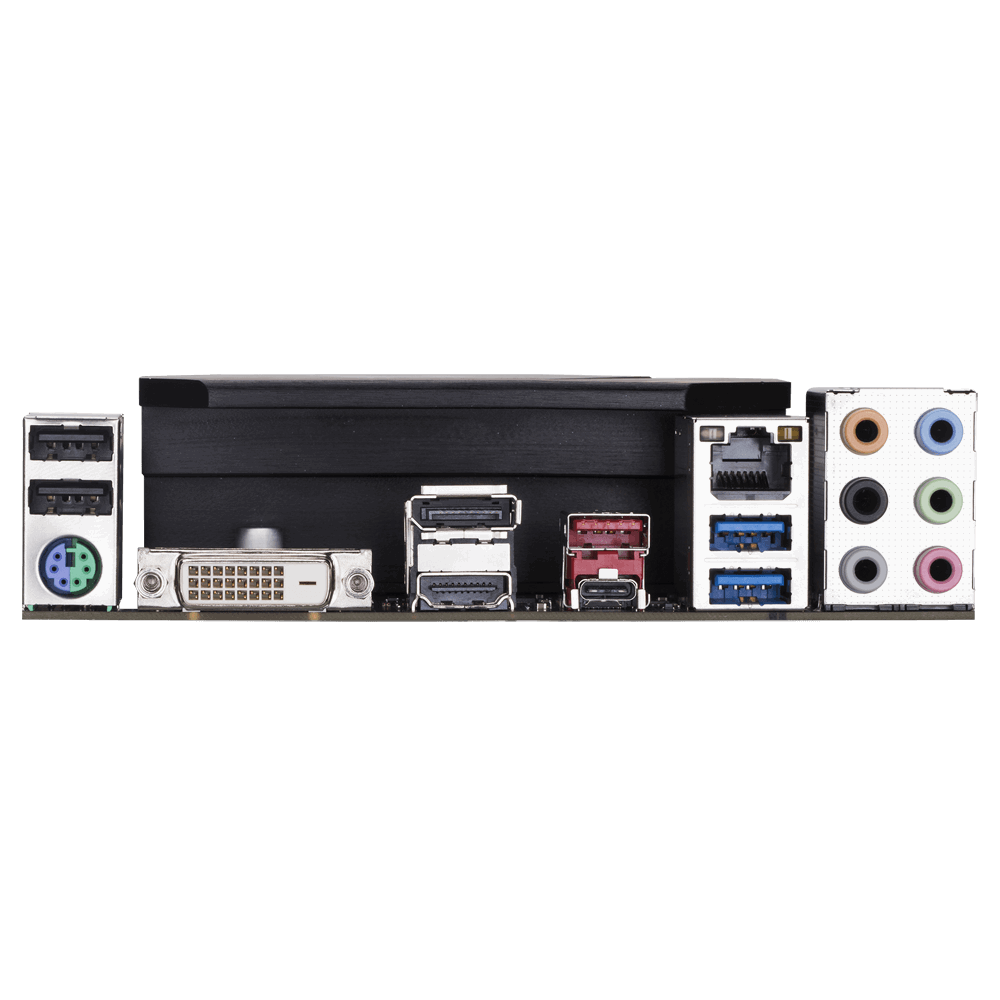

| Cổng kết nối (Back Panel) | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 1 x USB Type-C™ port, with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 2 Type-A port (red) 2 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
| LAN / Wireless | Intel® GbE LAN chip (10/100/1000 Mbit) |
| Kích cỡ | Micro ATX Form Factor; 24.4cm x 24.4cm |
