Mô tả

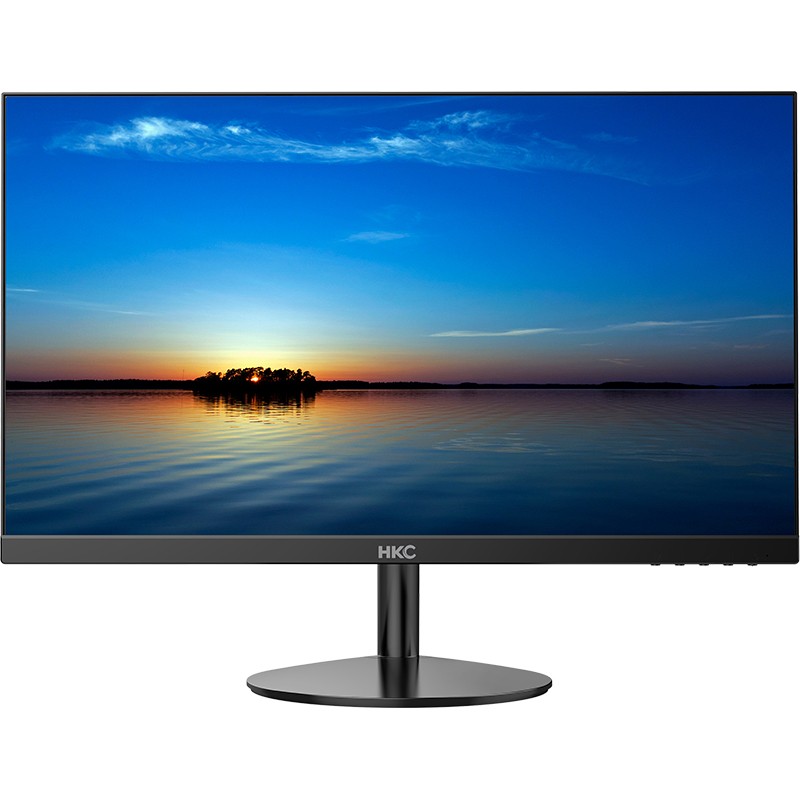

Model Name
M24A6
LCD Panel (VA) Display size 23.6″ Diagonal White LED-Backlight
Brightness(Typical) 220cd/m2 (Typical)
NTSC 72%
Contrast(Typical) 3000:1 (Typical)
Pixel Pitch 0.2715(H)X0.2715(V)
Resolution (H x V) 1920*1080
Aspect Ratio 16:9
Response Time(Typical) 25ms (Typ.) GTG 12ms
View Angles LR,UD(CR>10) H 178/ V 178
Panel Surface Anti-glare
Display Colors 16.7M colors
PC Input Range Max. display frequency
(Resolution H*V/Fv) 1920*1080 /60 Hz

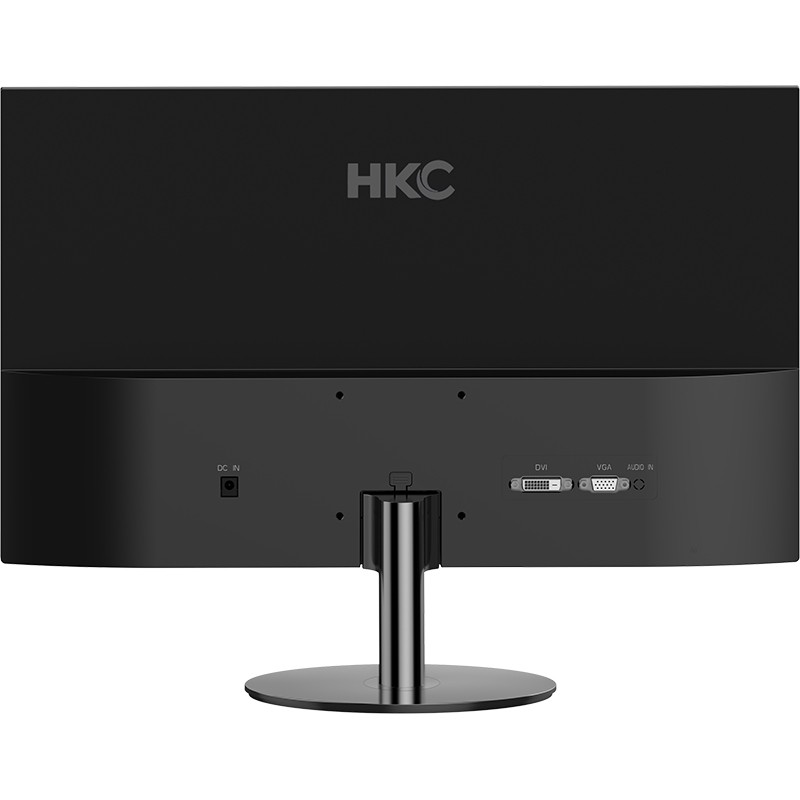

Interface Input 1 VGA
Input 2 HDMI
Output
Terminal Speaker(Typic )
Power Consumption(Typical) On: < 30W
Standby<=0.5W, Off<=0.5W
Power Range AC 100-240V 50/60Hz
Power Mode
Indicator Light Power on : Blue (LED)
Power saving : Blue Flicker (LED)
Operating
Condition Temperature 0℃ ～ 40℃
Humidity 20% ~ 85%, non-condensing
Physical Dimension
(W*D*H) 539.20*398.84*192mm
Packing Dimension
(W*D*H) 617x132x443mm
Net Weight 2.9Kg
Gross Weight 4.1Kg

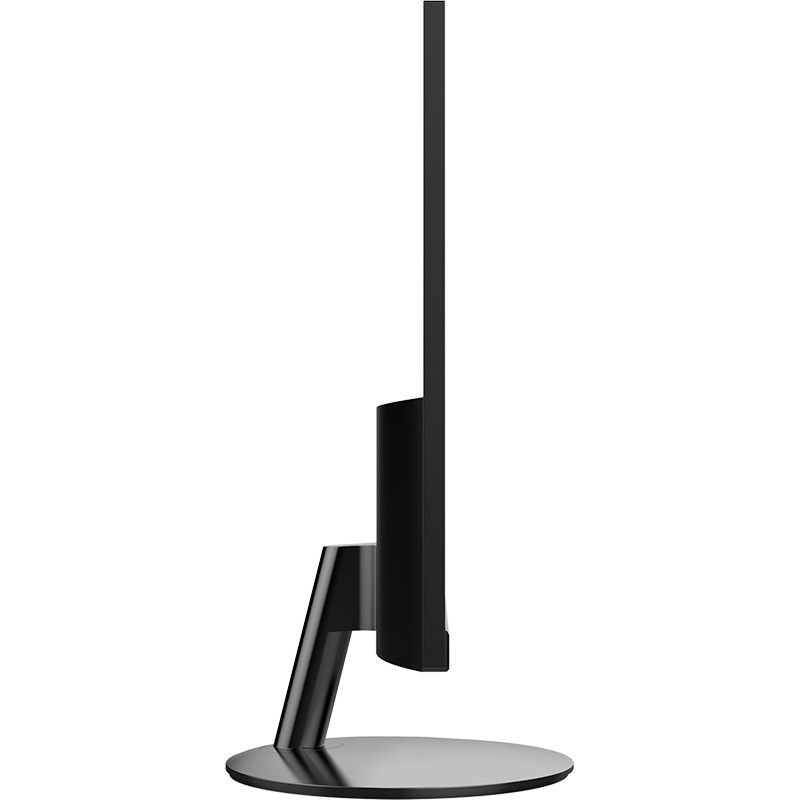

Tilt -5∘~ 15∘
Kensington Lock Yes
VESA Mounting 75*75mm
Controls Front Control Menu, Bri (-), Vol(+) Auto/Enter, Power
On Screen Display HKC Standard OSD format
Color WARM,COOL,User Mode
Preset Mode PC, Movie, Game, ECO Modes
Accessory Adapter Yes (1.5M) 12V 2.5A
HDMI Cable Yes (1.5M)
User Manual(Paper) YES
